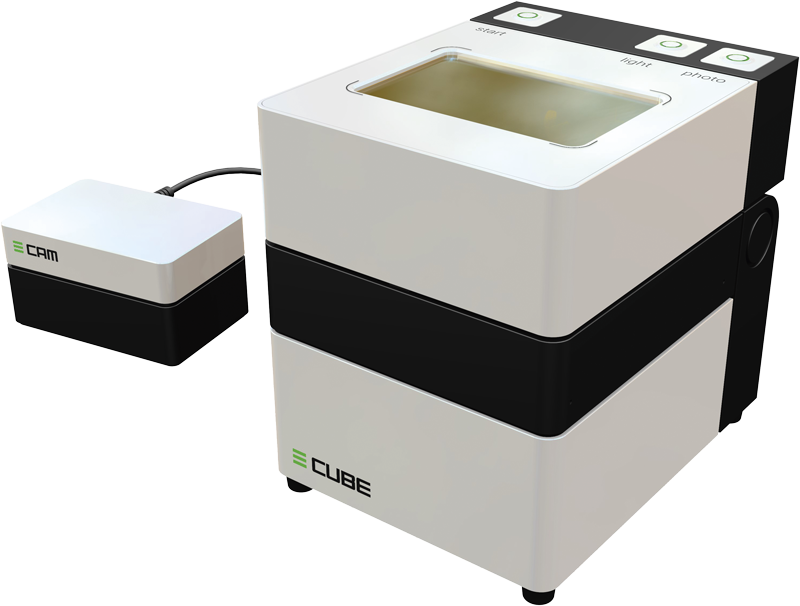

E-CUBE – Compact, Safe, Fast
THE STAND-ALONE UNIT FOR BOTH
MOLECULAR ROUTINE DIAGNOSTIC & RESEARCH
SYSTEM COMPONENTS
Integrated Micro Computer & Digital Camera
- computer with software for system control,
data storage and wireless data transfer (Wi-Fi) - integrated digital colour camera for gel documentation
- intuitive handling by smart interface design
Live Observation & Documentation of DNA/RNA
- excitation with visible light, using a non-toxic fluorescent dye, which gives a higher sensitivity than the toxic ethidium bromide
- highest sensitivity detection (below 2 ng/ fragment)
- direct sample staining
- no pre- or post-run gel staining necessary
Electrophoresis Unit
- runs with quality-checked precasted gels, cost and time-effective
- easily removable electrophoresis chamber
- external power supply 24 V
BLUE LED Illumination
- no UV-light emission to the laboratory staff
- illumination by visible blue LED light
- homogenous illumination provides for accurate semi quantification of separated samples
- high life span of the light source (LED panel >50,000 hours)
Stand-Alone Gel-Electrophoresis System
LIVE IMAGING + DOCUMENTATION + ANALYSIS
HIGHLIGHTS OF THE E-CUBE
- all-in-one DNA/RNA electrophoresis device including gel electrophoresis chamber, LED illumination, live display, documentation by integrated digital camera and software for image capture
- integrated computer system
- easy benchtop operation by daylight: no darkroom required
- availability of dedicated non-toxic high sensitivity stain
- quick and easy data transfer by USB port or Wi-Fi
- extremely robust and cost-effective
- necessary lab space (foot print) only 0.2m2
The Fusion: 5 Components = 1 System
TECHNICAL SPECIFICATIONS
Height: 187 mm (250 mm with E-CAM)
Width: 150 mm
Length: 192 mm
Weight: 3500 g
Power supply: 220 V AC => 24 V DC
Light source: High Power LED Panel, Blue, λ= 470 nm
The E-CUBE Product Portfolio: A Perfect Team
ALL-IN-ONE SYSTEM PLUS DEDICATED CONSUMABLES
The new E-CUBE Gel-Electrophoresis System combines all of the components necessary for qualitative and quantitative gel analysis of DNA/RNA:
Integrated micro computer with operation system and imaging software, power supply, electrophoresis chamber, LED illumination unit and high resolution digital camera. A special feature of this all-in-one and stand-alone system is the live observation of the electrophoresis process. The gel run can be examined by daylight directly through the orange band pass filter or in the E-CUBE control centre on your personal computer, tablet PC or smartphone. A darkroom in not required.

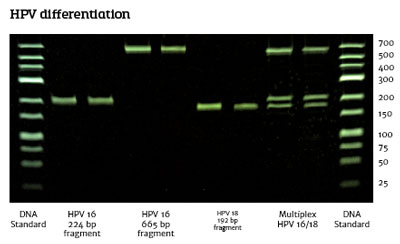

The E-CUBE allows the perfect separation of nucleic acid fragments and shows a unique sensitivity for DNA detection down to below 2 ng/fragment. This is realized
by staining the sample with the specially developed fluorochrome mix CUBE-GREEN and the use of the thin 3% agarose gel. The Cytecs “E-CUBE Gel Electrophoresis Kit” contains quality-checked, durable and ready-to-use gels, also including ready prepared buffers for sample preparation and the electrophoresis analysis.
Homogeneous illumination of the gel via the LED light panel allows the precise visualization of DNA/RNA sequences and semi quantification of DNA/RNA by comparison to control bands.
Cytecs offers customized development of PCR kits for various applications.
